| Fabricant | HYTRACK |

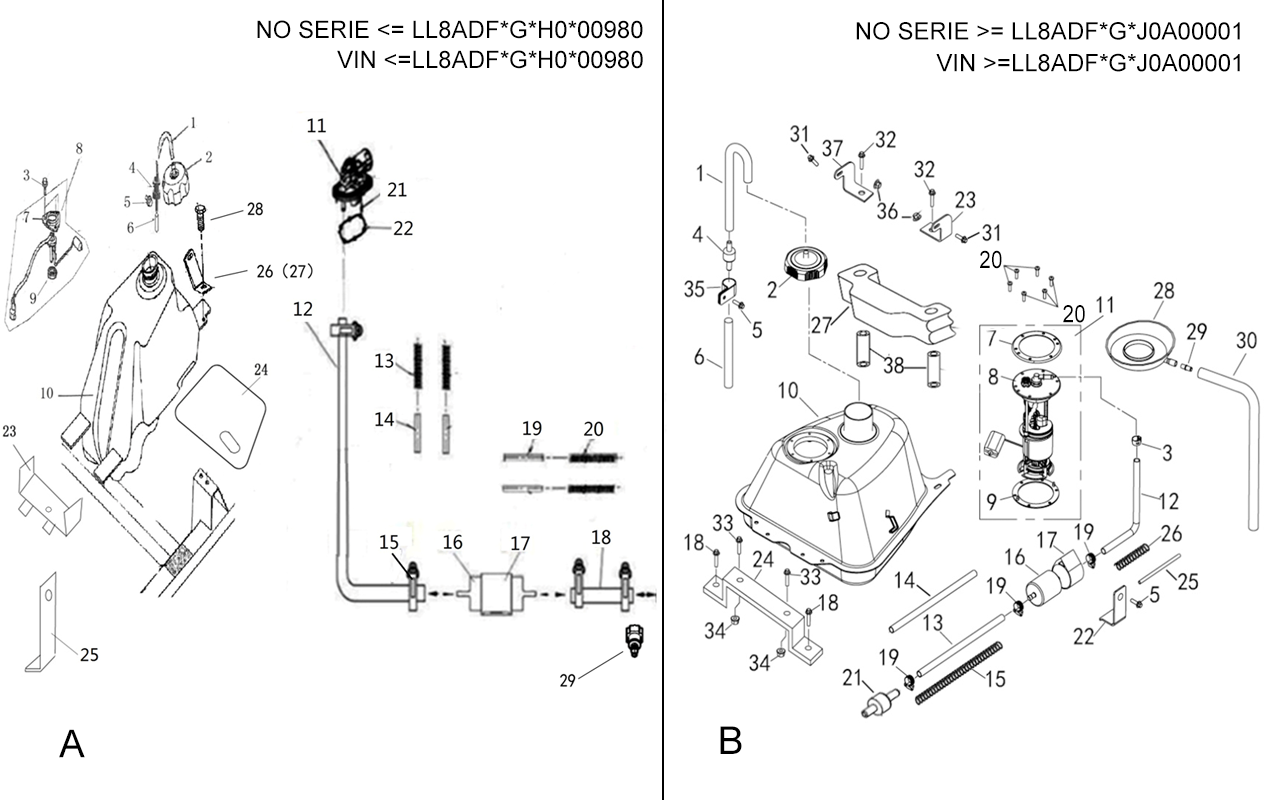

RESERVOIR CARBURANT HYTRACK 410 IS
RESERVOIR CARBURANT HYTRACK 410 IS
LE REPERE 7B NE SE DETAILLE PAS
LE REPERE 8B NE SE DETAILLE PAS
LE REPERE 25B NE SE DETAILLE PAS
REPERE 27B, VEUILLEZ NOUS CONSULTER
| Num. pièces | Nom produit | Ref. | Prix |
|---|---|---|---|
DURITE |
HY28095 HY 500T | 38.64 €
|
|
RENIFLARD D.5XD.9X450 |
HY35501 HY 500T | 9.00 €
|
|
BOUCHON DE RESERVOIR ESSENCE |
HY25017 | 21.84 €
|
|
VIS M6X16 |
HY10183 HY 500T MOTEUR | 1.32 €
|
|
CLIP D4,5 |
HY84428 | 4.32 €
|
|
CLAPET ANTI-RETOUR |
LH-710-021 | 18.84 €
|
|
VIS M5X10 |
HY10820 HY 500T | 0.96 €
|
|
VIS M6X12 |
HY11219 | 1.44 €
|
|
TUYAU |
HY25038 | 4.44 €
|
|
PLAQUE DE JAUGE |
HY35085 HY 500T | 2.88 €
|
|
JAUGE A CARBURANT |
HY35084 HY 500T | 62.16 €
|
|
JOINT |
HY35086 HY 500T | 6.84 €
|
|
RONDELLE CAOUTCHOUC |
HY36440 | 8.64 €
|
|
RESERVOIR CARBURANT |
HY27552 | 176.88 €
|
|
RESERVOIR A CARBURANT |
HY27832 | 136.32 €
|
|
POMPE A CARBURANT |
HY36177 | 374.28 €
|
|
POMPE A CARBURANT |
HY27833 | 269.76 €
|
|
DURITE |
HY73095 | 42.48 €
|
|
DURITE CARBURANT 1 |
HY27834 | 49.56 €
|
|
ISOLANT |
HY36071 | 5.76 €
|
|
DURITE CARBURANT 1 L54 |
HY71417 | 65.16 €
|
|
JOINT |
HY36075 | 14.40 €
|
|
PARE-CHALEUR DURITE CARBURANT |
HY36073 | 6.84 €
|
|
COLLIER |
HY70851 | 2.88 €
|
|
RESSORT PROTECTION DURITE |
HY36077 | 14.28 €
|
|
FILTRE CARBURANT |
HY70842 | 20.16 €
|
|
CAOUTCHOUC POUR FILTRE |
HY70845 | 12.24 €
|
|
RACCORD |
HY71418A | 36.00 €
|
|
VIS M6X16 |
HY11097 | 1.44 €
|
|
PARE-CHALEUR DURITE CARBURANT. |
HY36073 | 6.84 €
|
|
COLLIER |
LH-880-021 | 0.96 €
|
|
RESSORT PROTECTION DURITE. |
HY36077 | 14.28 €
|
|
VIS M5X16 |
HY10040 | 0.72 €
|
|
VIS M4X16 |
HY10753 | 0.84 €
|
|
RACCORD PRISE RAPIDE 7.89 |
HY73146 | 11.52 €
|
|
JOINT POMPE CARBURANT 8 TROUS |
HY36181 | 29.04 €
|
|
PLAQUE |
HY36142 | 4.80 €
|
|
PLAQUE DE MONTAGE |
HY27553 | 26.28 €
|
|
SUPPORT GAUCHE |
HY27820 | 3.60 €
|
|
FEUILLE ADIABATIQUE |
HY36212 | 29.76 €
|
|
PLAQUE DE MONTAGE. |
HY27553 | 26.28 €
|
|
PLAQUE. |
HY36142 | 4.80 €
|
|
PATTE MAINTIEN RESERVOIR GCHE |
HY25023 | 3.60 €
|
|
RESSORT DE PROTECTION |
HY27836 | 5.40 €
|
|
PATTE MAINTIEN RESERVOIR DROIT |
HY25024 | 3.60 €
|
|
VIS M6X60 |
HY27554 | 6.12 €
|
|
JOINT CAOUTCHOUC |
HY36078 | 12.36 €
|
|
RACCORD PRISE RAPIDE 7.89. |
HY73146 | 11.52 €
|
|
LIAISON |
HY60210 | 4.32 €
|
|
DURITE. |
HY28095 HY 500T | 38.64 €
|
|
VIS M6X16. |
HY11097 | 1.44 €
|
|
VIS M6X60 |
HY11220 | 1.44 €
|
|
VIS M8X16 |
HY10168 | 1.68 €
|
|
ECROU M8 |
HY10079 HY 500 PONT ARRIERE | 1.32 €
|
|
COLLIER. |
HY70851 | 2.88 €
|
|
ECROU M6 |
HY10004 HY 500T CULASSE | 1.32 €
|
|
SUPPORT DROIT |
HY27821 | 3.60 €
|
|
ENTRETOISE |
HY20210 | 5.16 €
|
|
PARE-CHALEUR |
HY27837 | 29.76 €
|
RESERVOIR CARBURANT HYTRACK 410 IS
