| Fabricant | HYTRACK |

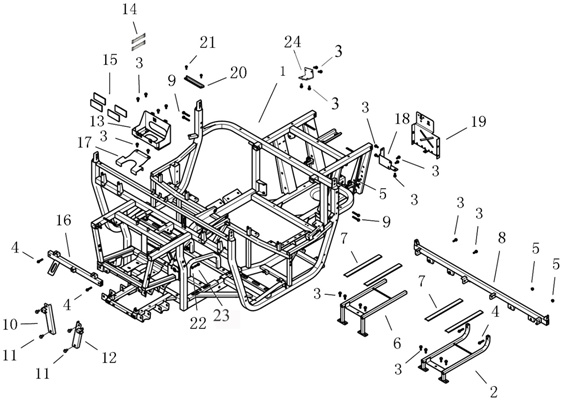

CHASSIS JOBBER 1100 DMAXX FULL
CHASSIS JOBBER 1100 DMAXX FULL
| Num. pièces | Nom produit | Ref. | Prix |
|---|---|---|---|
CHASSIS |
HY86300 | 2 304.00 €
|
|
SUPPORT GAUCHE |
HY84227 | 259.20 €
|
|
VIS M8X20°° |
HY10081 | 0.72 €
|
|
VIS M8X1.25X20 |
SC-96414-08020-B - ECHAPPEMENT HY265H | 3.60 €
|
|
VIS M8X40 |
HY70032 | 1.08 €
|
|
ECROU M8 |
HY10079 HY CULASSE | 1.32 €
|
|
SUPPORT DROIT |
HY84228 | 259.20 €
|
|
TAMPON CAOUTCHOUC |
HY73106 | 4.20 €
|
|
SUPPORT |
HY86301 | 135.12 €
|
|
VIS M8X1.25X55 |
HY10780 | 1.08 €
|
|
SUPPORT AVANT DROIT |
HY73107 | 10.44 €
|
|
VIS 10X1.25X20 |
HY10163 | 2.40 €
|
|
SUPPORT AVANT GAUCHE |
HY73108 | 10.44 €
|
|
COFFRE DE BATTERIE |
HY86419 | 113.76 €
|
|
SANGLE DE BATTERIE |
HY73396 | 4.20 €
|
|
MOUSSE |
HY73395 | 2.28 €
|
|
SUPPORT SUPERIEUR |
HY73110 | 20.76 €
|
|
SUPPORT DURITE |
HY86384 | 17.28 €
|
|
SUPPORT DE PLAQUE 1 |
HY84151 | 59.04 €
|
|
SUPPORT DE PLAQUE 2 |
HY84152 | 94.92 €
|
|
SUPPORT |
HY84226 | 30.24 €
|
|
ECROU M8 BLOC VIS |
HY10099 | 0.84 €
|
|
VIS M8X40. |
HY10218 | 0.72 €
|
|
SUPPORT |
HY86306 | 86.04 €
|
CHASSIS JOBBER 1100 DMAXX FULL
